Max Volume, Midium-Format UV LED
Flatbed Inkjet Printer

DMPS 3060 LED UV Printers

UV PrinterOptimize Your Production

UV ink

UV ink does not tarnish much, strong against chemical, printable on diverse materials, good in durability.

LED lamp

LED lamp has a long life, and does not generate ozone.
As LED lamp does not generate high heat, it can be used for materials susceptible to heat.

Bulk ink system

Unlike a disposable cartridge, this system can make use of 100% ink.

Automatic head height control

A sensor automatically controls the distance of a print head.

Synchronous output

If DMPS RIB is selected, white and color can be printed at the same time.

Highest resolution

1.5pl Epson head 5760x1440dpi

Printable area

280mm x 600mm ( 11" x 23.6" )

Printable maximum material thickness

150mm (5.9")

Printable materials

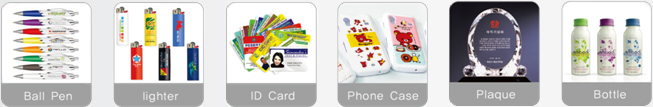

Wood, metal, ceramic tile, plastic, glass, industrial parts, promotion products

Division Specifcation
Print head EPSON piezo print head
Max. Print size 280mm x 600mm (11in x 23.6in)
Max. resolution Up to 5760x1440 dpi
Print speed (A4 criterion) 720x720 dpi: 60seconds/1440x720 dpi:120seconds/1440x1440 dpi:240seconds
Head Clearance 150mm (5.9in) / Rotary jig 30~90mm(1.2in~3.5in)
Proudct size (W)650mm x(L) 630mm x (H)570mm / 82kg(26in x 25in x H:23in/180lb)
Input power 120/220V AC, 10A
Operation system Window XP / Window vista/Window7/Window8
Application software Partner RIP/ D RIP
